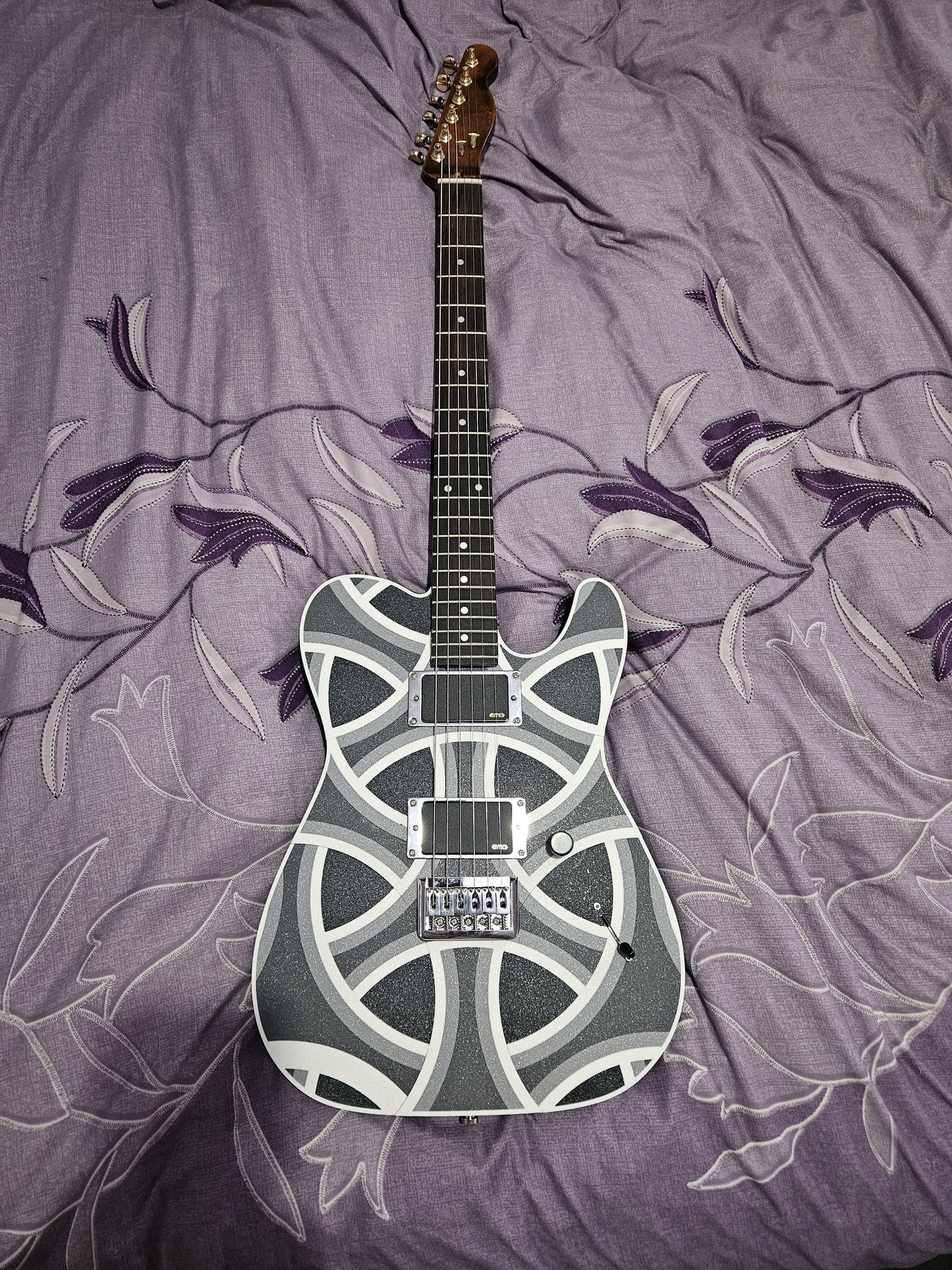

Modern Telecaster Jim Root Style

UPDATE I've just created a Discord server for any chat or help you may need with this build! Head on over! https://discord.gg/wznhkDrwMc

This is the model that started them all. The most requested of my models and the one I've been holding out on releasing until I knew it was ready.

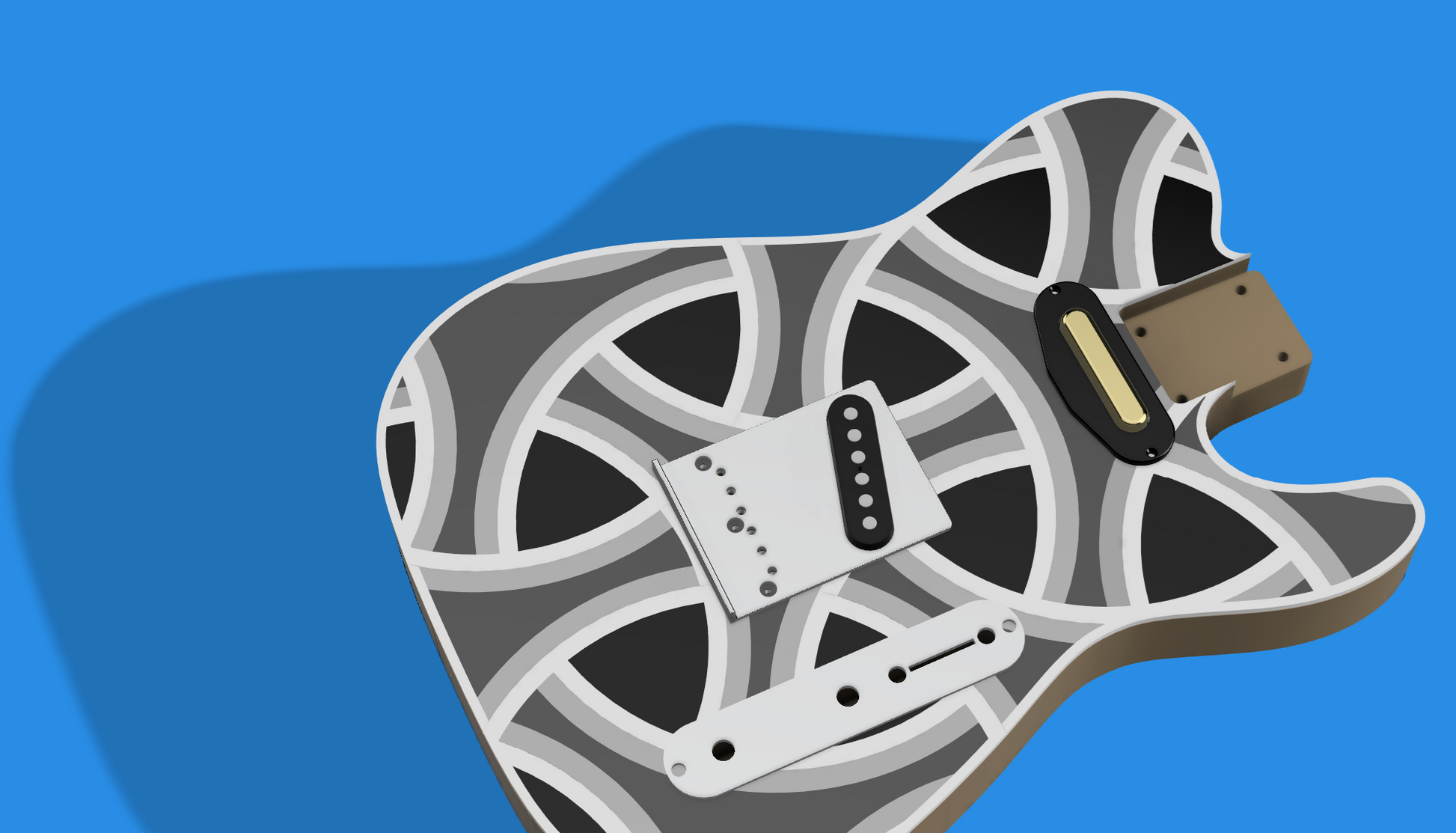

And now, not only am I releasing it, I'm including a variant of it as well. Yup, two for the price of one! You get the twin 'bucker and single volume variant and I've added a straight up standard Telecaster variant. What does this mean for you? It means, go right ahead, pull apart that orange honeycombed offset thing (You know that one I'm talking about) and move all of it's components over to this bad mutha.

To build the standard twin single coil, you need all of the parts that come from a standard. They're all going to work. BUT, the bridge MUST be the Modern tele bridge that utilises three mounting screws behind the saddles. I have a rework in the process for the vintage 4 screw mount.

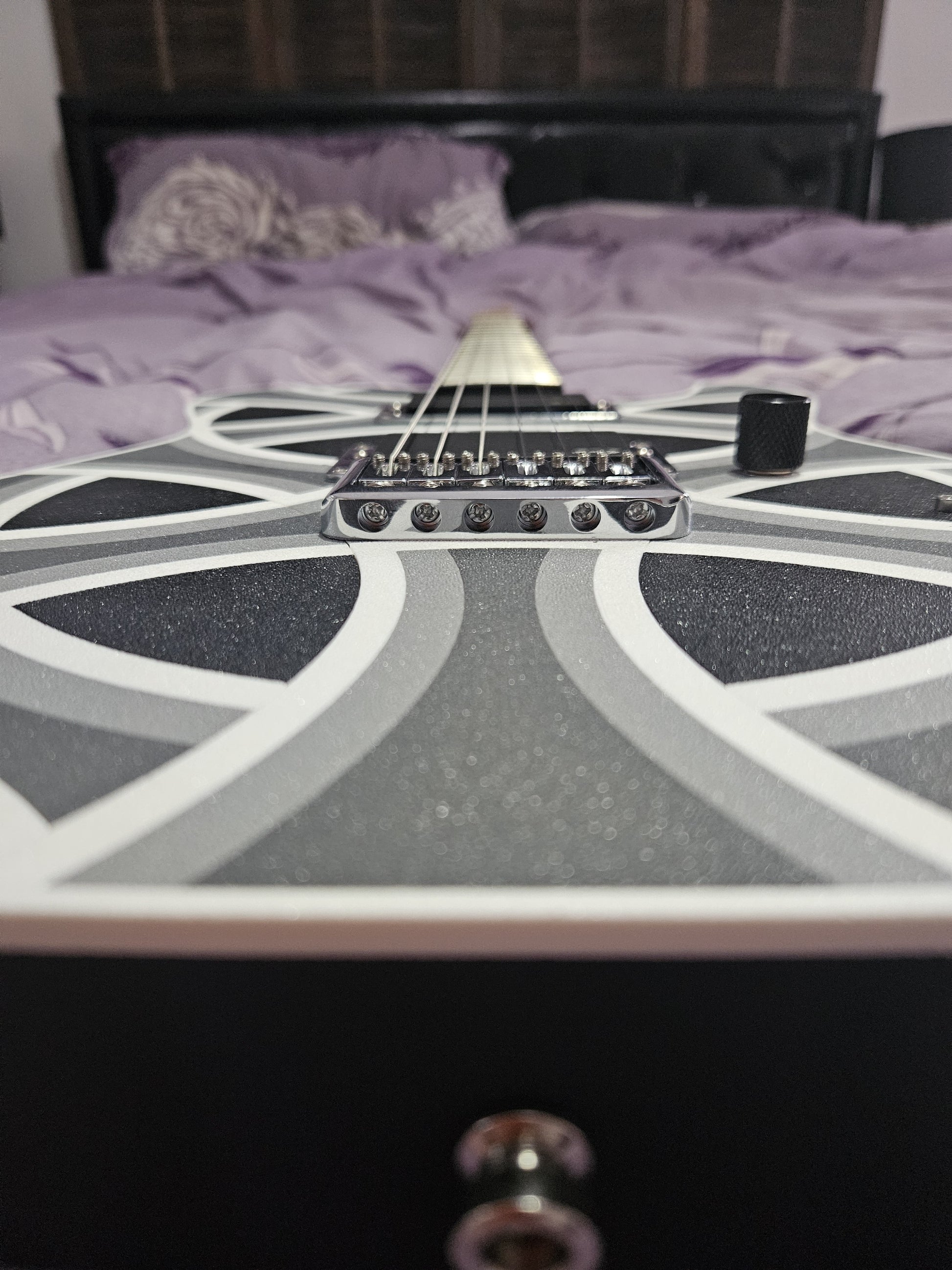

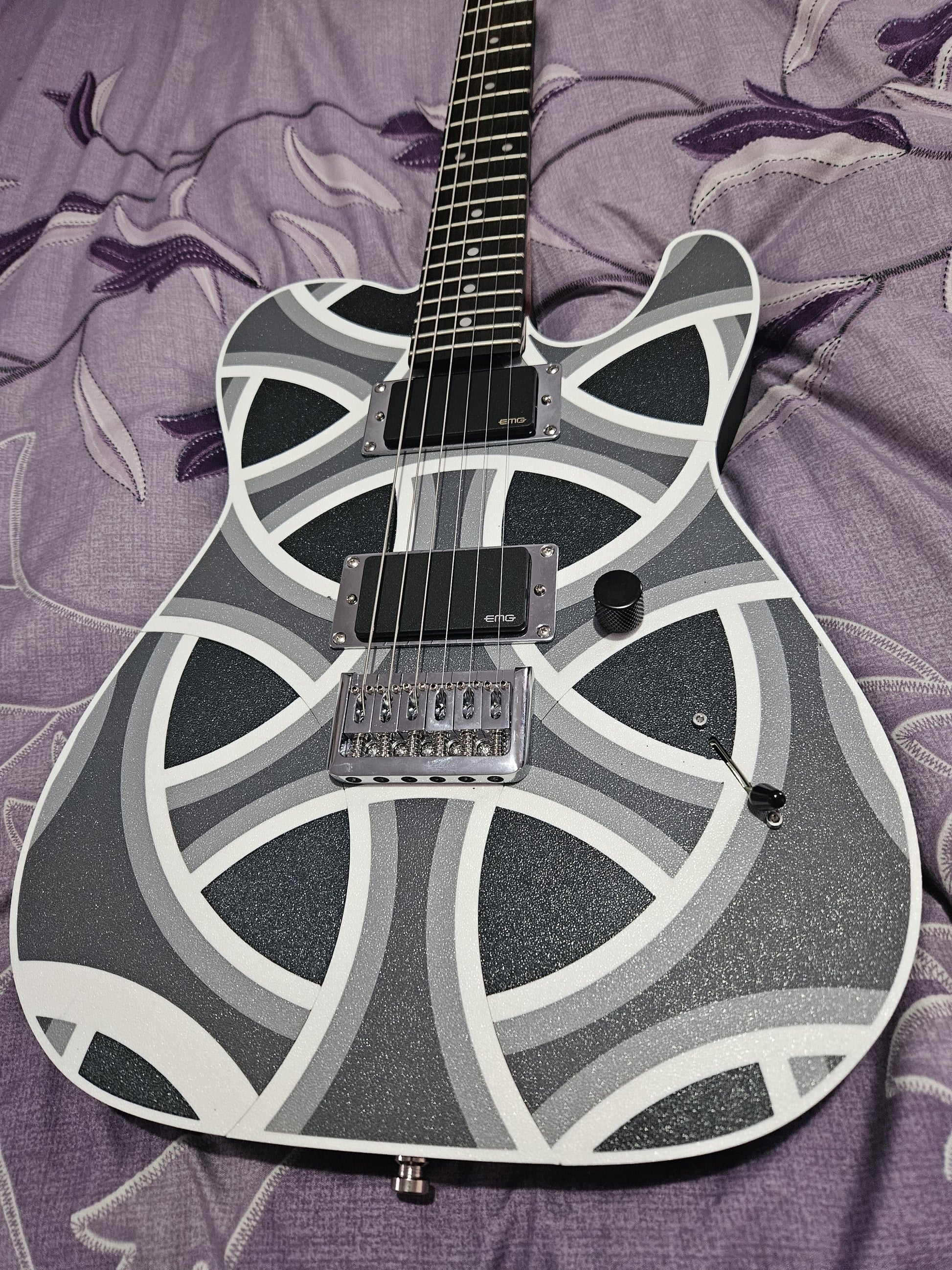

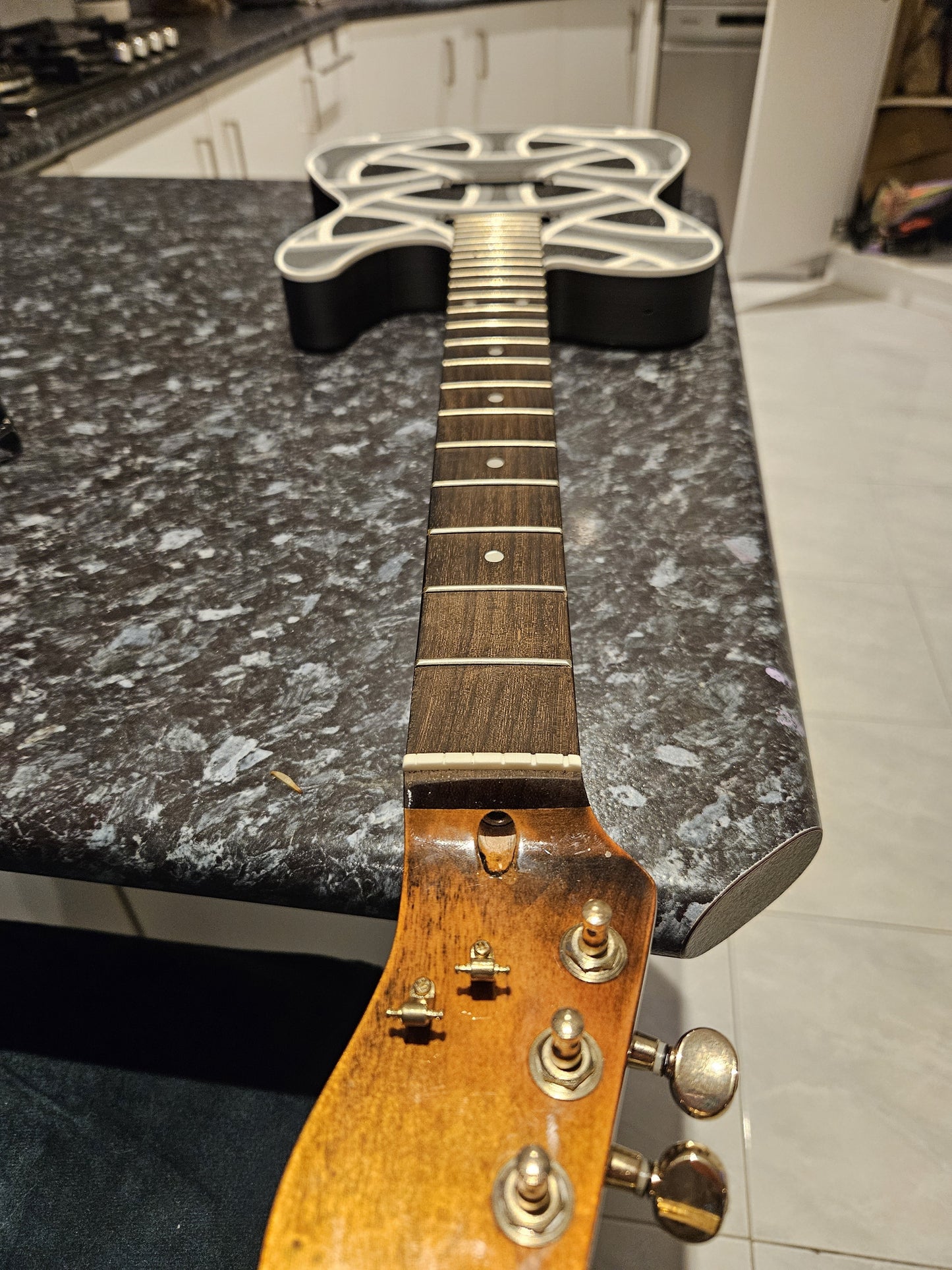

The Twin 'Bucker uses a Tele neck 21 or 22 fret. The hardtail bridge used is a Musiclily version. https://www.amazon.com/Musiclily-Non-Tremolo-Stratocaster-Telecaster-Replacement/dp/B01LCWK77U

A pair of humbuckers... make 'em hot because Hell Yeah. I'm not going to provide a link for that... you choose your tone.

A 500K Volume pot and Telecaster style 3 way switch. I'd suggest getting this guy and then simply cutting the tone pot out of the circuit.
https://www.amazon.com/SoulDiM-Guitar-Harness-Prewired-Electric/dp/B0C9T9HGZV/

A Telecaster Output jack
https://www.amazon.com/Electrosocket-Jack-Plate-Telecasters-Switchcraft/dp/B06XZYD4NJ

Pair of strap buttons
https://www.amazon.com/Buttons-Security-Electric-Mushrooms-Ukulele/dp/B0CZ8GQDYW

String Ferrules
https://www.amazon.com/Zangc-Ferrules-Mounting-Bushings-Instrument/dp/B0CW9LD6ZR

Neck Plate
https://www.amazon.com/OVSAL-Electric-Replacement-Telecaster-Stratocaster/dp/B0DG8G4TYB

Guitar tuners
https://www.amazon.com/Guyker-Inline-Vintage-Guitar-String/dp/B09NC8JBY9

String Trees
https://www.amazon.com/Guyker-Guitar-Roller-String-Retainers/dp/B0C9PRN5K8

Now go raise some hell!

Main body.
2.4mm Walls and bottom
1.2mm Top
25% Gyroid infill for any components in between the neck pocket and the bridge. 15% for everything else.

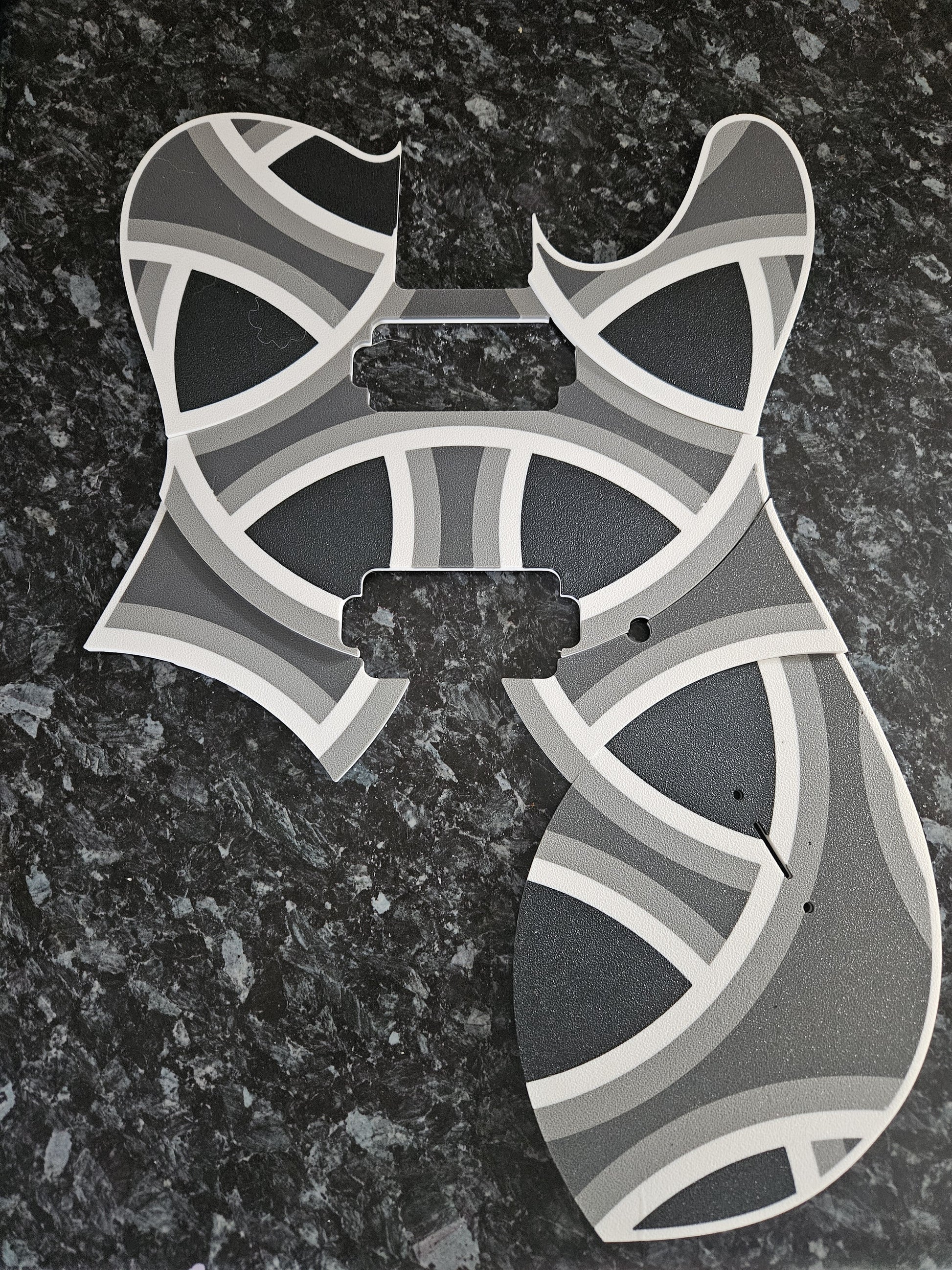

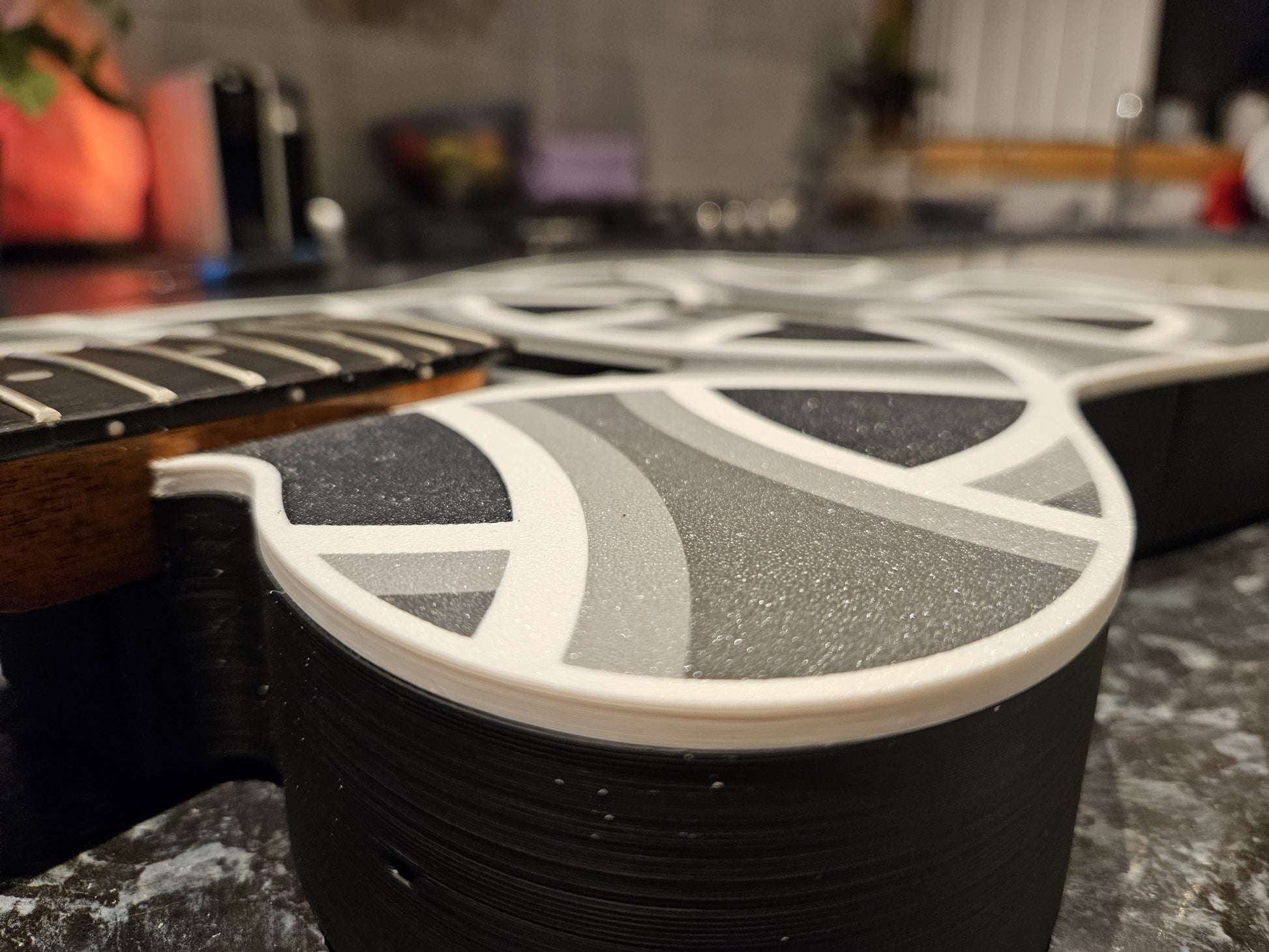

Veneer.
Use a textured PEI plate and flip all components upside down So the colour is face down.
2.4mm Bottom (This is actually the top) and walls
1.2mm Top
25% Gyroid infill for everywhere.
